FAAC 413 LS KIT | Electro mechanical operator double limit switch kit for swing gates
Complete kit for adouble residential and light commercial swing gate up to a maximum of 2.5m each leaf.
Slow Down on Open and Close
With this equipment you can adjust the speeda of your gate as it approaches the open and closed positions. Further improving on the overall installation and provides a personalised and refined touch to each application.
Integrated Open & Close Limits
This equipment features adjustable open and close limits. This allows you to set the gates limits of travel without the need for a physical stop in the ground. This feature has some limitiations and may not function correctly on wider gates. If your gates are over 1.8m in width it is advisable to talk to us before ordering if this feature is critical to your installation.
LCD Display
Control Panel with LCD display for simplified programming.
Quick & Easy Installation
Equipment designed for the quick & easy installation to existing hinged swing gates.

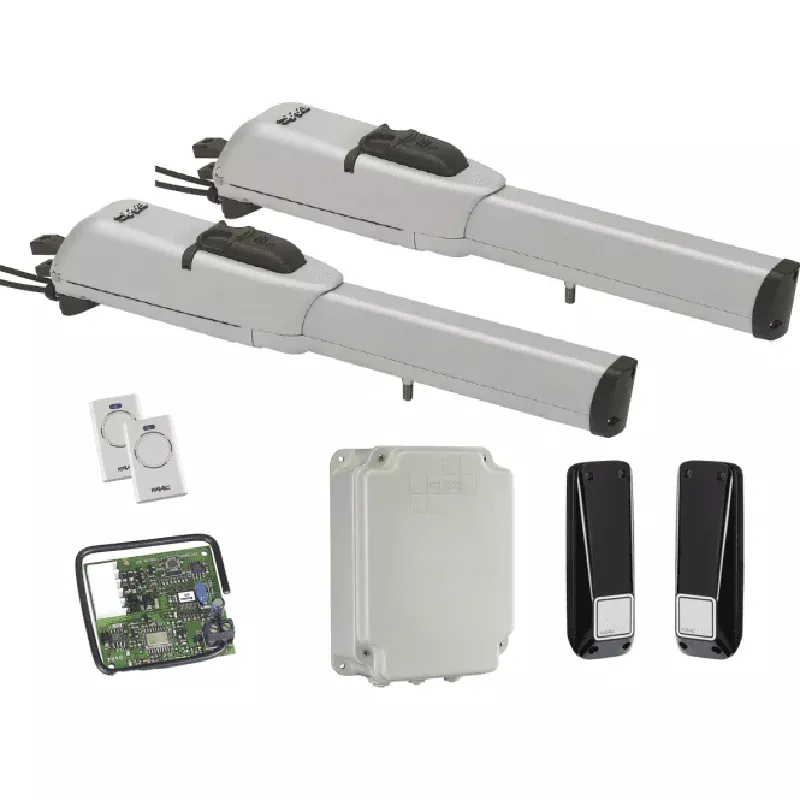

Kit includes:
| Quantity | Item |
|---|---|
| 2 | FAAC 413 LS 230v Operator |
| 1 | FAAC 455D Control Board |
| 1 | FAAC Control Board Housing |
| 1 | FAAC 868 SLH Plug in receiver/decoder |
| 2 | FAAC 868 SLH 2 Channel Transmitter’s |
| 1 | FAAC XP 20 D Pair of Photocells |
Gate Type Swing Gate
Single Or Twin Kit Single Gate
Kit Max Weight Per Gate 200kg
Max Length Per Gate 2500mm
Above Or Underground Above Ground
Max Opening Angle 110 Degrees
Motor Electromechanical
Locking Method Mechanically Locking Motor
Power Supply Voltage 230v
Motor Voltage 230v
Gate Speed 15 Seconds 90 Degrees
Duty Cycle 30 Cycles/Hour
Protection Rating IP 44
Motor Range 413
Category Swing Gate Kit
DOWNLOADS
- FAAC 413 Datasheet
- FAAC 413 Manual
