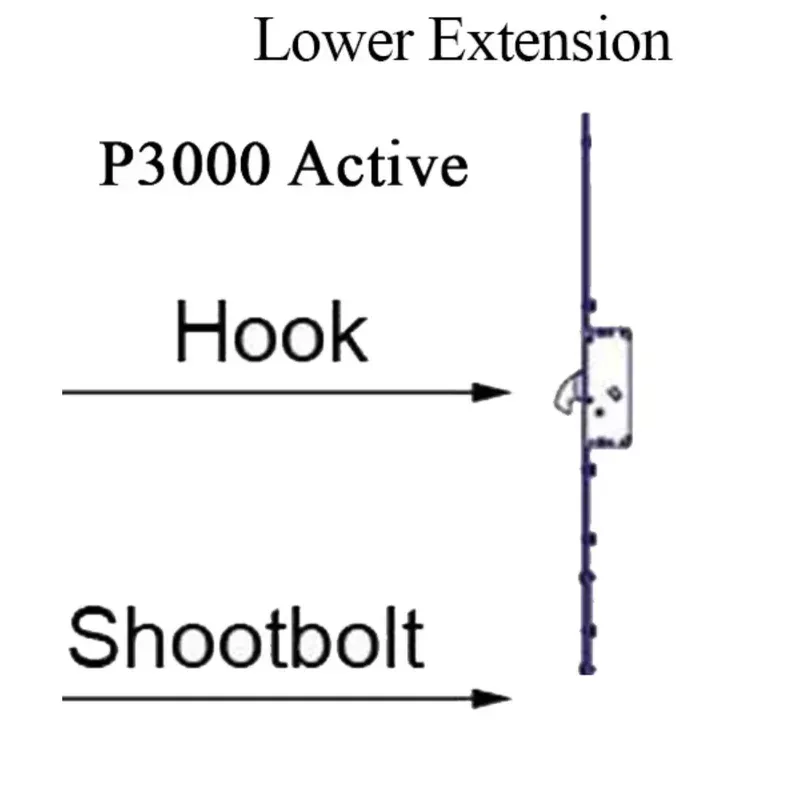

Part Number:16-30017LAAmesbury P3000 Multipoint lock gear for 5-point, Rhino hooks and shootboltsKey above handle
Faceplate width: 5/8″ (16mm)Backset: 1-3/4″ (45mm)Handle Spacing: 3-5/8″ (92mm)Handle Height: 36″ (914mm)Lower Rhino Hook: 24.87″ (632mm)
This P3000 gear is used with multiple upper extensions depending on door panel height
Related partsUpper (middle) extensions-664530017UA for doors 69-82.5″, Upper hook at 14.47″664530018UA for doors 82-95.5″, Upper hook at 27.47″664530019UA for doors 95-108.5″, Upper hook at 40.47″664530020UA for doors 108-121.5″, Upper hook at 53.47″Top Shootbolt extension 16-3468Latch and Deadbolt Strike Plates: Curved lip 3475-82, Flat lip 3476-82, Passive 3477-82Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088Rhino Hook / Tongue Strike Plates: 2856-82Passive Gear for Double Doors: 16mm Faceplate, 45/92, 36″ Handle height 36″ 16-30013LA
