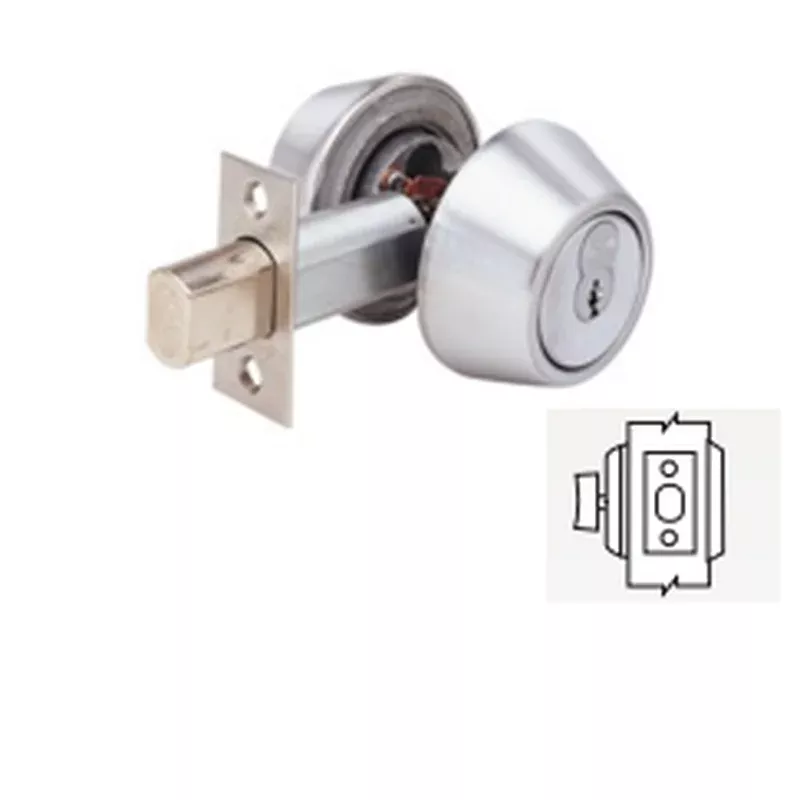

Arrow D60 Exit Deadbolt. The Arrow D Series deadlocks are engineered to perform under the most extreme conditions where security is critical. Our Grade 1 extra heavy duty deadlock surpasses the demands of industrial, institutional and commercial applications.
HousingTwo-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions.
Deadbolt1″ (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
Backset2-3/8″ (60.32mm), 2-3/4″ (69.85mm).
Deadbolt fronts2-1/4″ (57.15mm) x 1″ (25.40mm) standard for 2-3/8″ (60.32mm) backset, 2-1/4″ (57.15mm) x 1-1/8″ (28.57mm) standard for 2-3/4″ (69.85mm) backset. Drive-in deadbolts are available.
Doors1-3/8″ (34.925mm) to 1-3/4″ (44.45mm) thick standard.
StrikesSupplied standard with the 346 wood frame strike and BX91D strike reinforcement. The 345 metal frame strike is optional.
HandingAll functions are reversible.
Cylinder, StandardSolid brass, Arrow A keyway, 6 pin cylinder. Supplied with two nickel silver keys. Available in Schlage CS keyway and other competitive keyways.
Cylinder OptionsAccepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Bestor Falcon type cores (except the E41).
Certification
- ANSI A156.5, Auxiliary Locks, Grade 1
- Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device
