Model: 0500 SS PK KEY, 0505 SS PK KEY
Product Information:

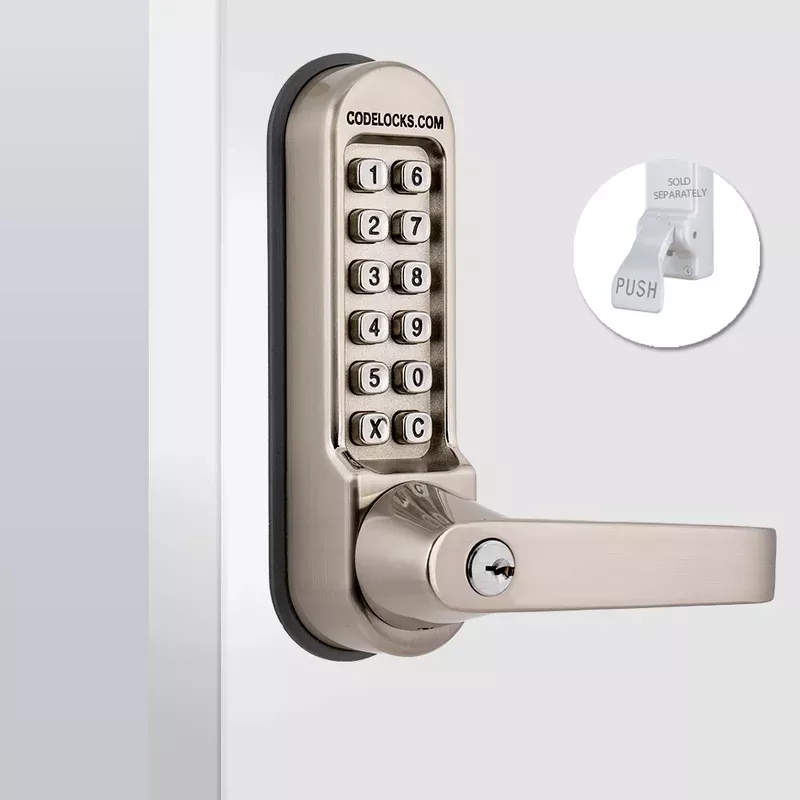

Heavy duty mechanical locks with key override and large full size redesigned lever handles, allowing use as the primary lock on doors. An extra long spindle is provided to work with most single point panic pads or bars. The outside lever will retract the latch freely until disabled.
The Next Evolution in Mechanical Digital Access Control.
The CL500KEY brings a powerful update to our trusted CL500 Mechanical Range. The redesigned lever handle assembly offers enhanced durability for high traffic applications, along with the functionality of key override. This solution bridges the gap between the trusted CL500 range and the heavyweight CL600 range, combining robust everyday dependability the CL500 is well known for, and better management versatility with the addition of the key.
Key Features
- Key Overridetwo keys supplied
- Locks can be supplied Keyed Alike’
- Full size redesigned lever handles with return to door
- Suitable for doors between35mm-60mm thick
- Large three coil lever return spring suitable for high traffic use
- Limited lifetime guarantee1
- 2,047 non-sequential code combinations
- Code Free access option
- Suitable for internal and external use
- Compatible with XT2 Weather Cover
Technical Specs:
- Brand: Codelocks
- Buttons: 2 x 6
- Code Change Method: Tumblers (Off Door)
- Codes: Single Code – 2,047 non sequential code combinations available
- Door Thickness: 35mm – 60mm (1 38″ – 2 38″)
- Finish: Stainless Steel
- Handed: Non Handed – Locks will fit doors hung on the left or right
- Keypad: 12 stainless steel buttons
- Latch Type: Mortice Lock (Sash)
- Lock Dimensions: 177mm (7″) x 48mm (1 78″)
- Lock Material: Zinc Alloy
- Orientation: Vertical
- Spindle: Two part 8mm (516) spring loaded spindle
- Suitable For: Internal, External
- User Types: Code
