FAAC 413 24V KIT S
Complete kit for a single residential and light commercial swing gate up to a maximum of 2.5m each leaf.
Battery Backup Available
Battery backup is available for this motor in the event of a mains power failure. Electric gates make it particularly difficult to gain access to a property if the mains power fails.
Integrated Open & Close Limits
This equipment features adjustable open and close limits. This allows you to set the limits of the gate of travel without the need for a physical stop in the ground. This feature has some limitations and may not function correctly on wider gates. If your gates are over 1.8m in width it is advisable to talk to us before ordering if this feature is critical to your installation.
Built-in obstacle detection
This equipment features built-in obstacle detection. Implemented correctly this can stop and reverse upon detection of an obstacle. Obstacles are detected when the gate experiences an increase in resistance that can be caused by a person a vehicle an object or even wind obstructing the path of the gate. Although this safety feature can be very effective. It is strongly advised that all installations undergo an impact force test to ensure the safety of anyone who may come in contact with the gate. Further safety can be added with the addition of safety edges.
Quick & Easy Installation
Equipment designed for the quick & easy installation of existing hinged swing gates. Can be easily fitted to gates and pillars with minimal excavation needed for the supply of mains power to the control board & low voltage cabling to the motors

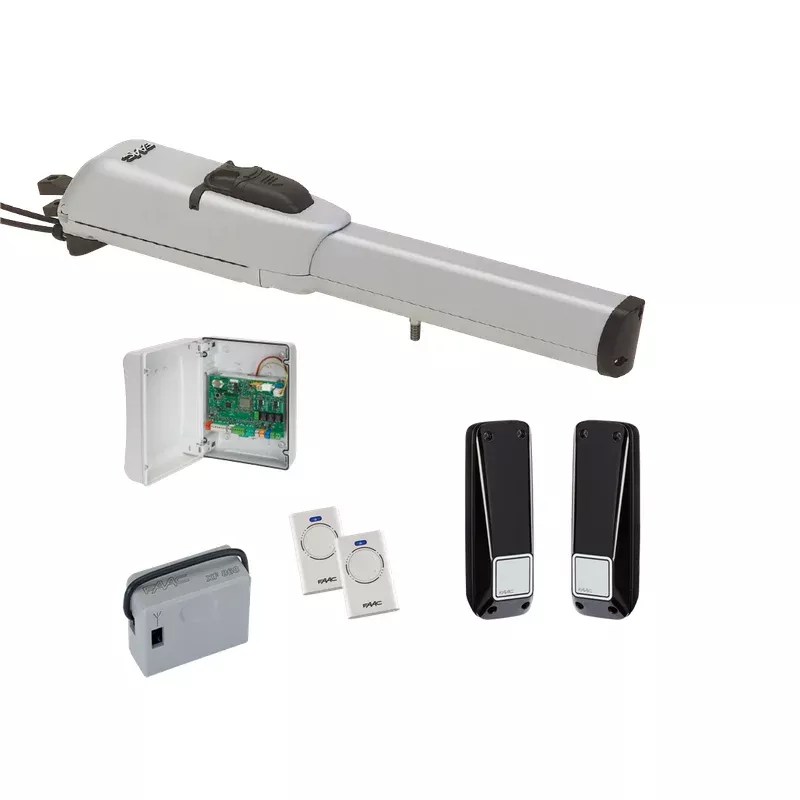

| Kit includes: | |
|---|---|
| Quantity | Item |
| 1 | FAAC 413 24v DC Operator |
| 1 | FAAC E124 Control Board |
| 1 | FAAC XF 868 SLH Receiver |
| 2 | FAAC 868 SLH 2 Channel Transmitter’s |
| 1 | FAAC XP 20B D Pair of Photocells |
Gate Type Swing Gate
Single Or Twin Kit Single Gate
Kit Max Weight Per Gate 200kg
Max Length Per Gate 2500mm
Above Or Underground Above Ground
Max Opening Angle 110 Degrees
Motor Electromechanical
Locking Method Mechanically Locking Motor
Power Supply Voltage 230v
Motor Voltage 24v
Gate Speed 15 Seconds 90 Degrees
Duty Cycle Very-intensive
Protection Rating IP 44
Motor Range 413
Category Swing Gate Kit
DOWNLOADS
- FAAC 413 Datasheet
- FAAC 413 Manual
