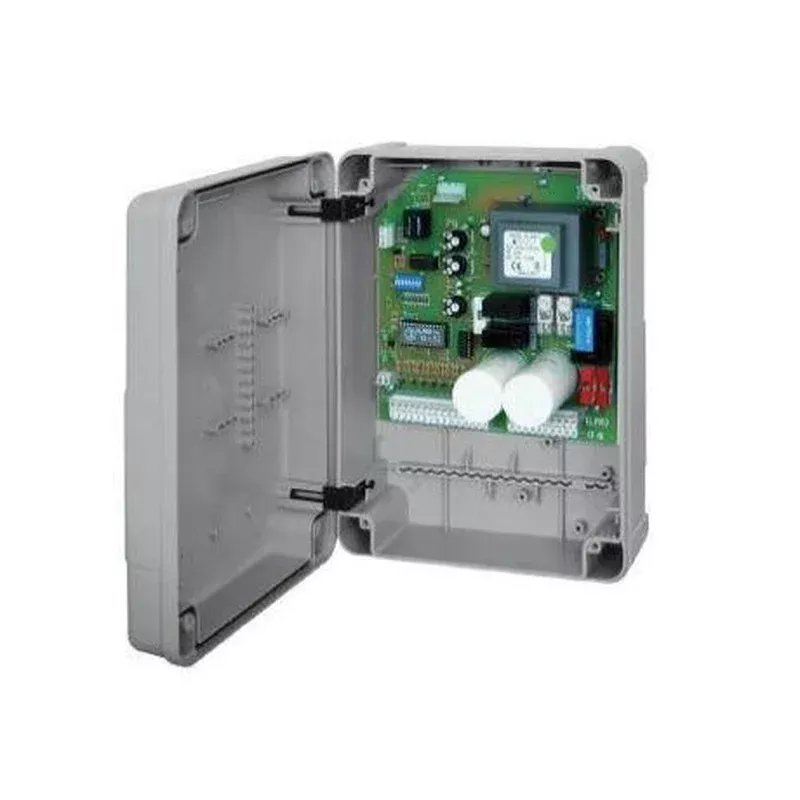

F/7047L – Elpro 27 Single Phase Control Panel
- Fadini Elpro 27 Control Panel
- ELPRO 27electronic controller fitted with motor capacitors
- Designed to control single or double swinging gates
- Motor operators with or without limit switches
- It also suits operators for single or bi-parting sliding gates (max 0,5 HP, with mechanical clutch)
|
Single phase PCB power supply |
230 V 10% 50/60 Hz |
|
Three phase PCB power supply |
– |
|
Max. power of motors |
750 W |
|
Courtesy light output |
230 V – 100 W max |
|
Photocells/Keyswitch/Radio receiver output |
24 V AC |
|
Pilot light output |
24 V – 3W max |
|
DSA control output |
24 V AC |
|
Flasher output |
230 V – 25 W max |
|
Motor run time |
0 – 120 S (Sliding) 0 – 60 S (Swing) |
|
Dwell time |
1 – 220 S |
|
Closing gate delay time |
0-10 S |
|
Pedestrian opening time |
1 – 45 S |
|
Box dimensions |
210 x 295 x 110 mm |
|
Protection standards |
IP64 |
|
Working temperature |
-20C +55C |
