Part Number: 6-C0617-22-0-FG

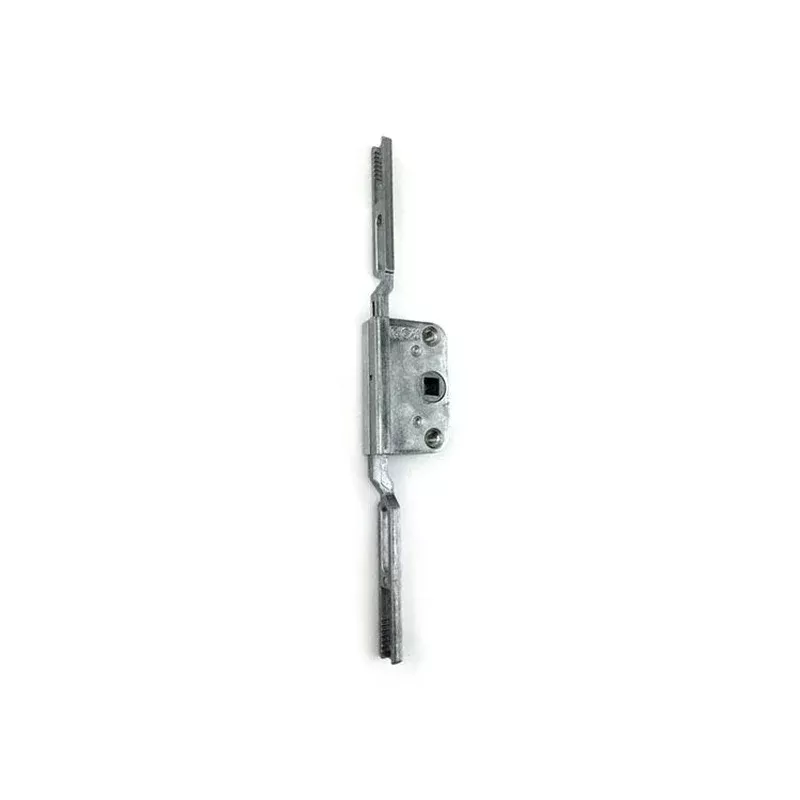

G-U Operator (gear box) for push-out casement window
Backset (distance from edge of window to center of handle): 22mm (7/8 inch)Material: Zamak / ZincHandle Hole: 7mm Square (1/4 inch)Uses M5 Screws (not included)Distance Between Mounting Screw Holes: 43mm (1-5/8 inches)Housing Length: 55mm (1-3/16 inches)Overall Length (Retracted): 175mm (6-7/8 inches)Overall Length (Extended): 255mm (8-7/8 inches)
Markings on Case: 6-C0617-22-0-1
Used with extension and cover in push-out casement window application
