Product Description

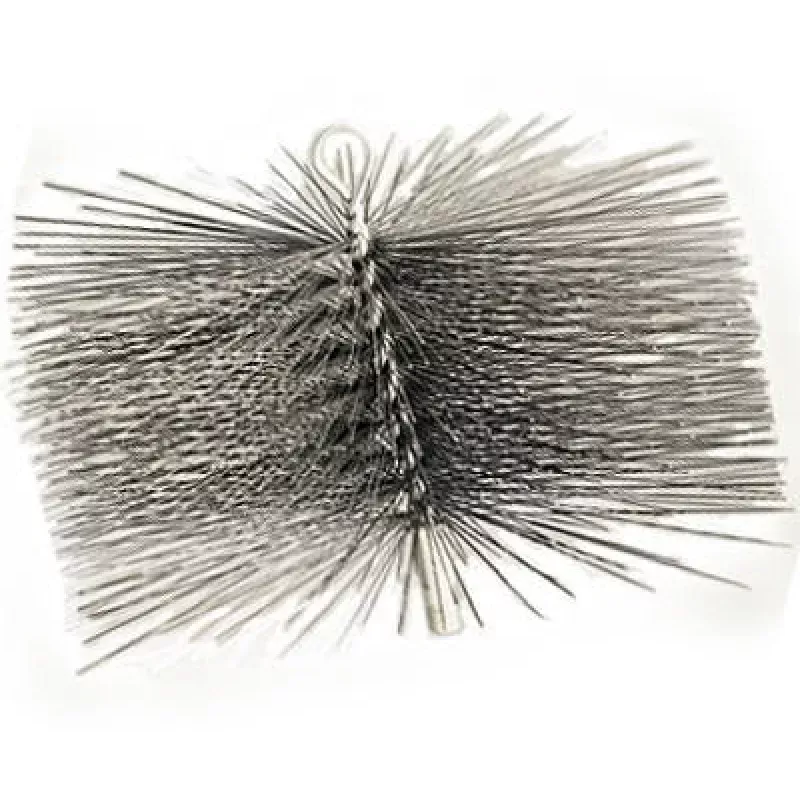

The IMPERIAL MFG GROUP USA INC BR0186 is a rectangular wire chimney brush built for cleaning rectangular flue tiles and chimney liners in residential and light commercial installations. The brush measures 8 inches by 12 inches and is constructed with a single spiral design using oil-tempered wire at 0.0286 inches in diameter. A 1/4-inch NPT male thread connection attaches the brush to standard flexible or rigid chimney rod systems. Licensed chimney sweeps and HVAC service technicians use this brush as part of routine flue maintenance and annual cleanings required by code.
This brush is suited for rectangular masonry chimney flues commonly found in wood-burning fireplaces and solid-fuel appliance systems. The 8-inch by 12-inch face covers a standard rectangular flue tile opening. The oil-tempered wire construction is appropriate for removing creosote deposits, soot, and debris from clay tile liners. It is typically deployed on residential service calls where a rectangular flue profile rules out the use of round brushes.
Key Features
- Rectangular profile at 8 inches by 12 inches fits standard rectangular flue tile openings
- Single spiral brush configuration for consistent contact across the flue wall surface
- Oil-tempered wire at 0.0286 inches diameter for durability and effective deposit removal
- 1/4-inch NPT male thread connects to standard chimney rod systems
- Package quantity of 8 units per case, suitable for stocking service vehicles or supply counters
Compatibility
Designed as an OEM-style replacement and standard-fit brush for rectangular chimney flue systems accepting a 1/4-inch NPT rod connection.
Installation Notes
This brush should be installed and operated by a qualified chimney sweep or licensed HVAC technician familiar with chimney maintenance procedures. Before beginning any cleaning work, verify the fireplace damper is closed and the appliance is fully cooled and shut off. Attach the brush securely to compatible chimney rods rated for the flue depth being serviced. Always work in accordance with NFPA 211 guidelines for chimney cleaning and inspection.
Technical Specifications
- Brush Dimensions: 8 inches x 12 inches
- Shape: Rectangular
- Wire Diameter: 0.0286 inches
- Wire Type: Oil-tempered steel
- Brush Style: Single spiral
- Thread Connection: 1/4-inch NPT male
- Package Quantity: 8 units per case
- Weight: 13.52 pounds
Standard Information
- Brand: IMPERIAL MFG GROUP USA INC
- Manufacturer Part Number: BR0186
