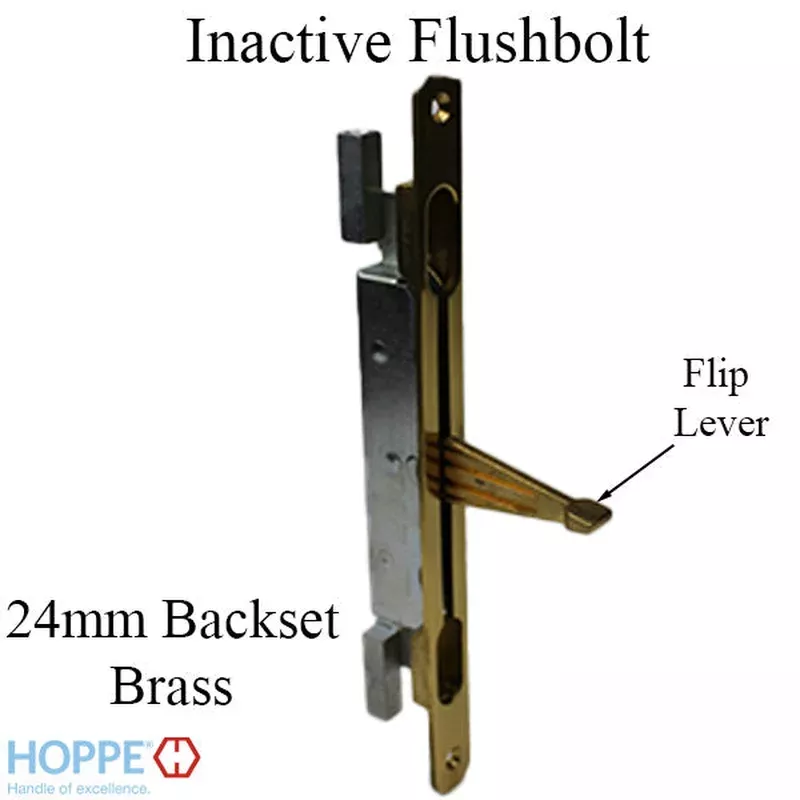

Inactive flushbolt rod used on double French doors.There are several Options: Please Review Images
This Item has been Discounted and is limited to existing inventory
Specifications:Width of Face Plate – 3/4 inch (20mm)FacePlate End: RadiusFace Plate Finish: Polished Brass (F71)Rod Backset: 0.94 (24 mm) From edge of faceplate to center of rodRod Diameter: 5/16 (8 mm) ThreadRods in Extended / Locked position: 8.80 inches (223.5mm)Rods in Retracted / Unlocked position: 7.60 inches (193mm)Overall Flushbolt Body Length: 9.84 inches ( 250mm)Country of origin: GermanyPriced and sold each.
Available OptionsFace Plate Finish – Brass or Brushed StainlessRod Backset: 3 possible – 0.94 (24 mm); 1.02 (26 mm) ; 1.18 inches (30 mm)Rod Diameter: 2 Possible – 5/16 (8 mm) or 3/8 inch (10 mm)Rod Length: Varies -Top & Bottom Rods may be cut to size if to long
To Determine Rod length – Not Included1. Bottom handle height, minus 4.8125 plus rod length = handle height2. Top handle height, plus 2.5 inches plus rod length = door panel handle heightNote: add rod lengths Plus 7.3125 inches = overall door panel length
