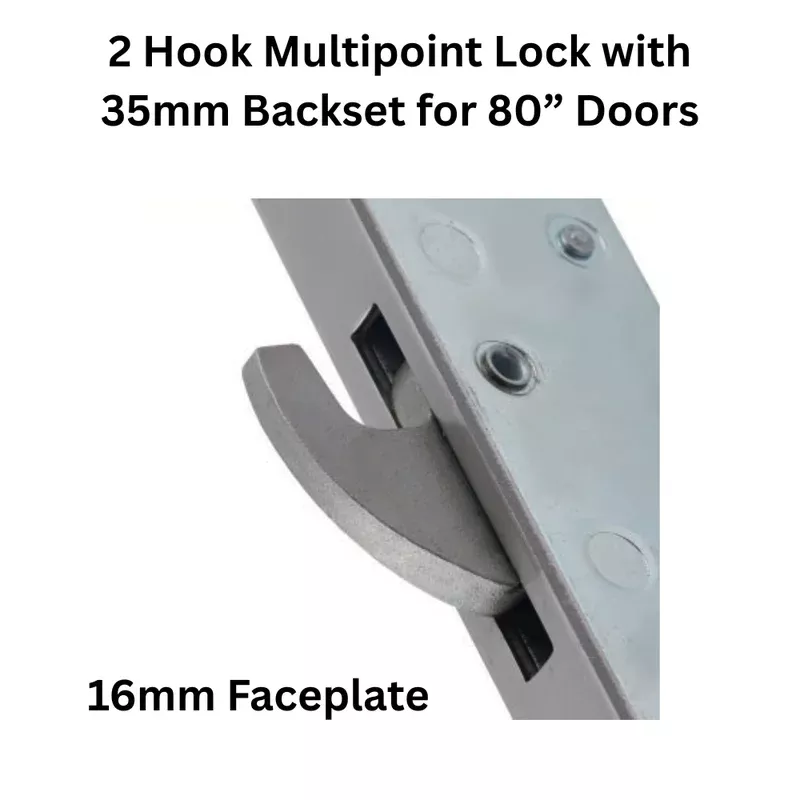

Interlock 2 Hook Multipoint Lock 16mm Faceplate, 35mm Backset for 80 Doors

Part Number : DL03-6352-080

Dimension A: 80 (2032) mm

Dimension B: 30 763 mm

Dimension C: 79 2006 mm

Dimension D: 84.9″ 2156 mm

Backset : 35mm

Faceplate : 16mm

Features: Solid cast stainless steel hook bolts 1 304 stainless steel dead bolt Independent dead bolt function: the dead boldcan be extended without extending the auxiliarylock points Easily reversible 304 stainless steel latch bolt tominimize stock requirements Non-scratch latch will not damage strike fi nish 35mm and 45mm backset options Sprung lock case with PZ92mm center withelongated slot to accommodate a variety oftrim sets 16mm faceplate Anti-slam mishandling device; prevents multiplelocking points from accidentally extending andpotentially damaging door frame Euro profi le cylinder standard, US cylinder optional Brushed 304 stainless steel faceplate offering highcorrosion resistance Tested to 100,000 cycles

Optional Extras: 304 stainless steel Shoot bolt Set for additionalsecurity 304 stainless steel Extension Piece to increase doorlock height range Inactive Lock range available.

Material Specification:

Lock Case: 304 stainless steelFaceplate: Brushed 304 stainless steelConnecting Rods: 304 stainless steelDead Bolt & Latch Bolt: 304 stainless steelTongue Bolts: 304 stainless steelStrikes: 304 stainless steel
