Part Number : DL01-6540
part number DL01-0540

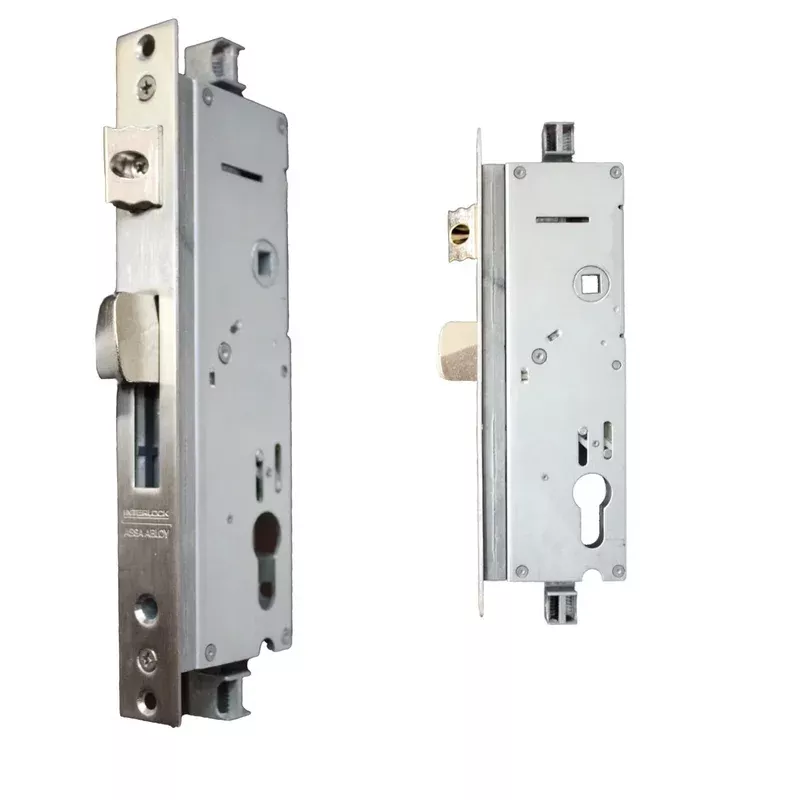

Interlock Assa Abloy 50/92 DL01-6450 Optimum Compression Lock with deadlocking spring latch and deadbolt.When rods are connected and engaged becomes a 4-point lock
Backset: 2″ (50mm)Deadbolt Throw: 3/4″ (20mm)Handle to Cylinder (center to center): 92mm (3-5/8 inch)Faceplate Width: 15/16 inch (24mm)Faceplate Length: 8-7/16″ (214mm)Spindle Hub Diameter: 5/16″ (8mm)Lock Body Depth: 2-9/16″ ( 65mm)Lock Body Length: 7-1/4 ” (184mm)
Important Note:There are other similar locks with different Handle to Cylinder Distance of 3-5/16″ (85mm) or 3-5/8″ (92mm)Please check dimensions before purchasing, any questions call customer service for assistance.
