Part Number:DL01-6000EF-35

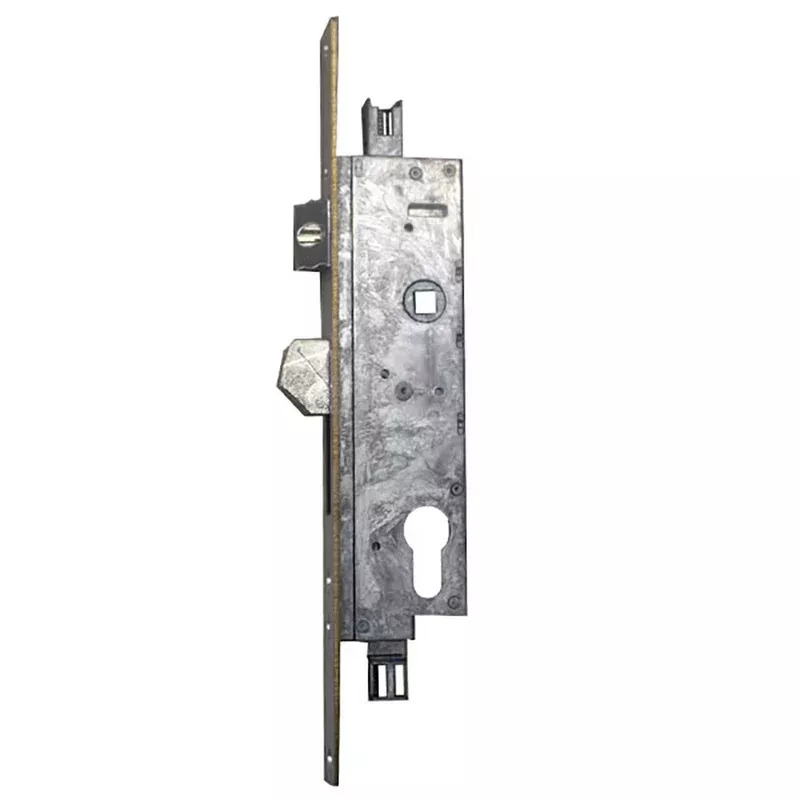

24mm Interlock LCL 4-Point Lever Compression Lock 35/85
Used as Single point lock or 4 point lock with concealed rods
Specifications:
Available Backset: 1-3/8 inch (35mm) 1.378
Handle to Cylinder PZ: 3-5/16 inch ( 85mm) 3.346
Faceplate Width: 29/32 inch (23mm) .906
Faceplate Length: Long Extended 11-1/4 inch (286mm) 11.26
Faceplate Screw Holes: 10-5/8 inch (270mm) 10.63
Deadbolt Projection: 3/4 inch (18.8mm) .739
Rod Connection, Backset: 13/16 inch (21mm) .827
