Part Number:14521-SN-SALVAGE
This item is considered blemished and may include but is not limited to slight scuffs, scratches, and/or missing components such as screws.
Blemished items are priced accordingly and are sold as is.
No returns, refunds, or exchanges.

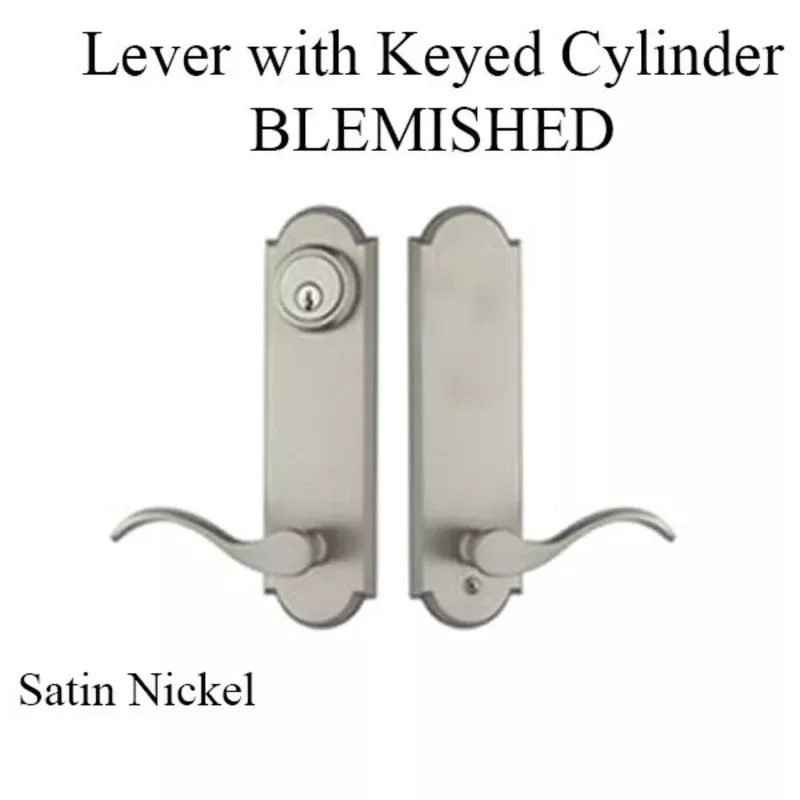

Monaco Wave style lever for Triple Latch multipoint lock hardwarePremium multipoint handle set for use with triple latch, deadlocking tongue, and shoot bolt multipoint locks
Application: Residential exterior door with Rockwell multipoint lock.Function: Active Keyed door
Plate Width: 2-1/2 inchesPlate Length: 9 inchesFinish: Brushed Satin Nickel or Oil Rubbed BronzePlate Style: Traditional arch top escutcheon platesLever Style: curved lever, classic wave designMaterial: solid forged brass
Bore Application: 5-1/2 inch, center of holes for Passage and DeadboltCross Bore: 2-1/8″ StandardDoor Thickness: 1-3/4 inchLock Handle Hub to Cylinder: 5-1/4 inchSpindle Length: 4-5/16 inchKeyway: Schlage SC1, 5 pinKeys: 2 with Large Bow head
Strike Plates ordered Separately ( 1-3/4 x 3-1/2″ length) Need 4 on 8′ door
Note:The key cylinder hole on the deadbolt is not in the center of the rosettes, it is offset from the center of the rosette by a small distance. This is the reason they measure 5-1/4 inches but they are made to fit a 5-1/2 Center to Center double bore on the door.
This item is considered blemished and may include but is not limited to slight scuffs, scratches, and/or missing components such as screws.
Blemished items are priced accordingly and are sold as is.
No returns, refunds, or exchanges.
