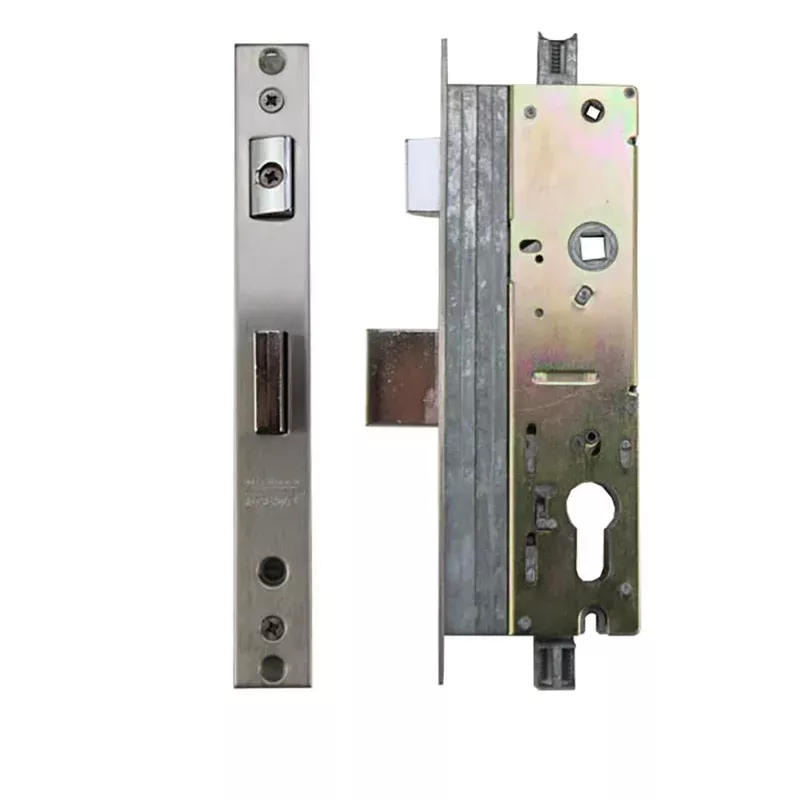

Part Number:DL01-6000Interlock Optimum hinged door 2-4 point mortise lock with 2 inch backset. Used by many aluminum door manufacturers, and to replace damaged or missing mortise lock in hinged doors. When deadbolt is extended the spring latch becomes rigid and creates another locking point.
Model: OptimumBackset(s) Available: 30, 40, and 50 mmHandle to Cylinder PZ: 3-5/16 inch (85mm) 3.346Deadbolt Throw: 15/16 (24mm) .0945Faceplate Width: 15/16 inch (24mm) 0.945Faceplate Length: 8-1/4 inch (210mm) 8.268Spindle Hub: 5/16 inch (8mm) 0.315Markings: Interlock Assa AbloyMaterial: Zinc, Steel, Stainless Steel
