Part Number:DL01-6640
|
DL01-6080 |

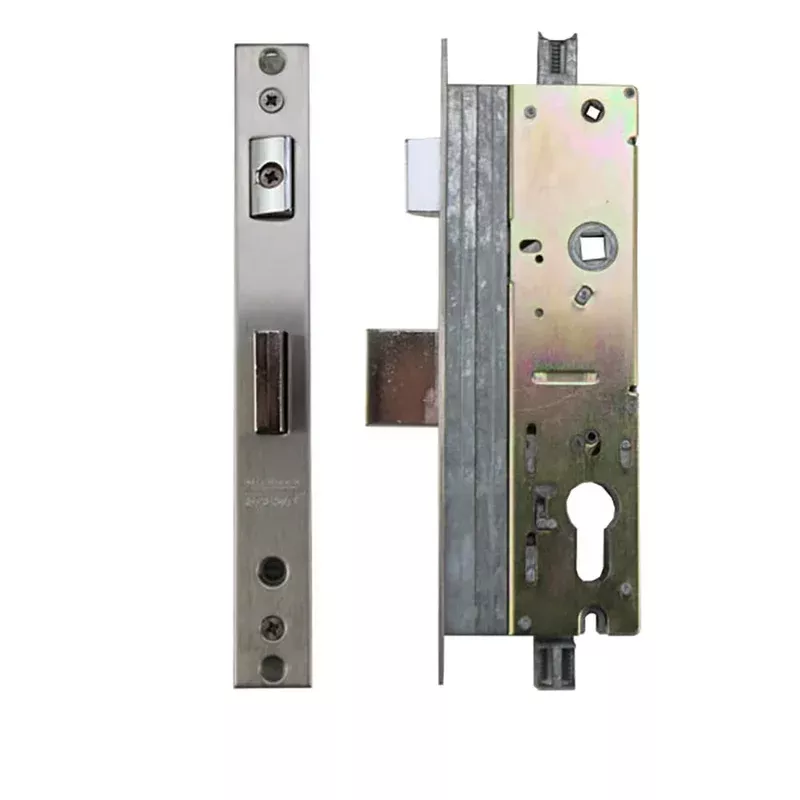

OPTIMUM LOCK 2P ACTIVE 40 BS ROLLER LATCH |
Interlock Optimum hinged door 4 point mortise lock with 40mm backset. Used by many aluminum door manufacturers, and to replace damaged or missing mortise lock in hinged doors. When deadbolt is extended the spring latch becomes rigid and creates another locking point.
Model: OptimumBackset(s) Available: 1-9/16″ (40mm)Handle to Cylinder PZ: 3-5/16 inch (85mm) 3.346Deadbolt Throw: 15/16″ (24mm) .0945Faceplate Width: 15/16 inch (24mm) 0.945Faceplate Length: 8-1/4 inch (210mm) 8.268Spindle Hub: 5/16 inch (8mm) 0.315Markings: Interlock Assa AbloyMaterial: Zinc, Steel, Stainless Steel.
