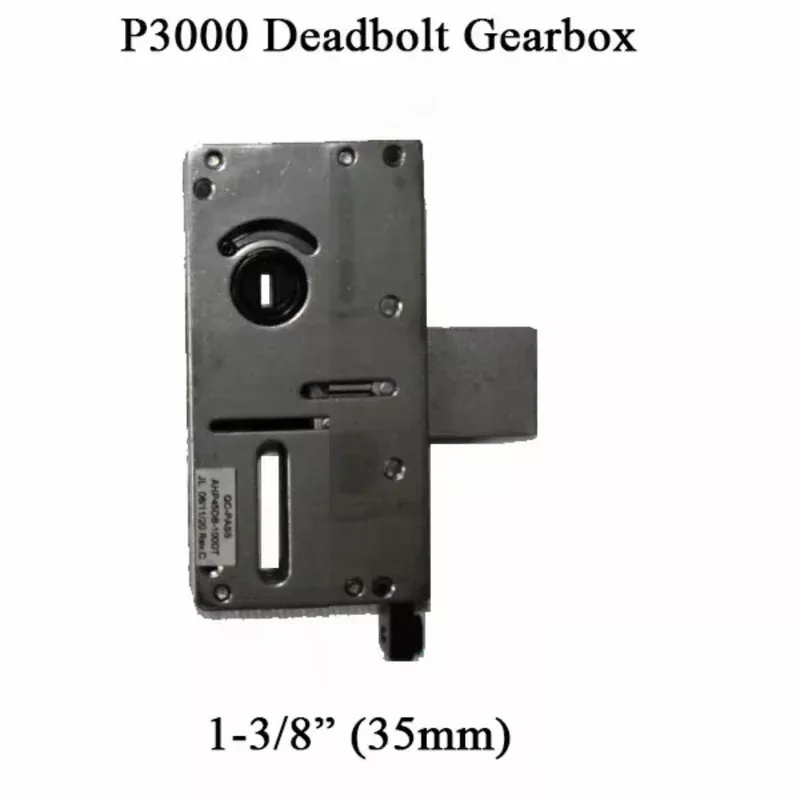

Part Number:P3000-35DBPremiere P3000 Active Gear box for DeadboltThe P3000 has 2 gear boxes, one for the deadbolt (Upper) and one for the Spring Latch (Lower)Sometimes referred to as a Babysitter lock, as the deadbolt works without engaging the upper or lower shootbolts.This makes it easier for individuals who are not familiar with Multipoint locks to lock and unlock the door.
Specifications:Lock Case only for DeadboltBackset: 1-3/8 inch (35mm)Markings / Sticker:AHP35DB-100DT Deadbolt box
To Change Handing / Latch Reversal:1. Extend Deadbolt and pull spring latch out2. Rotate to correct position3. Check function of lock before closing door
How To Operate P3000 Lock – This is a different design than most Multipoint Locks1. To Lock Door: Throw the deadbolt, then lift handle to engage the Auxiliary locks2. To Unlock Door: Retract deadbolt and push lever down to open.
