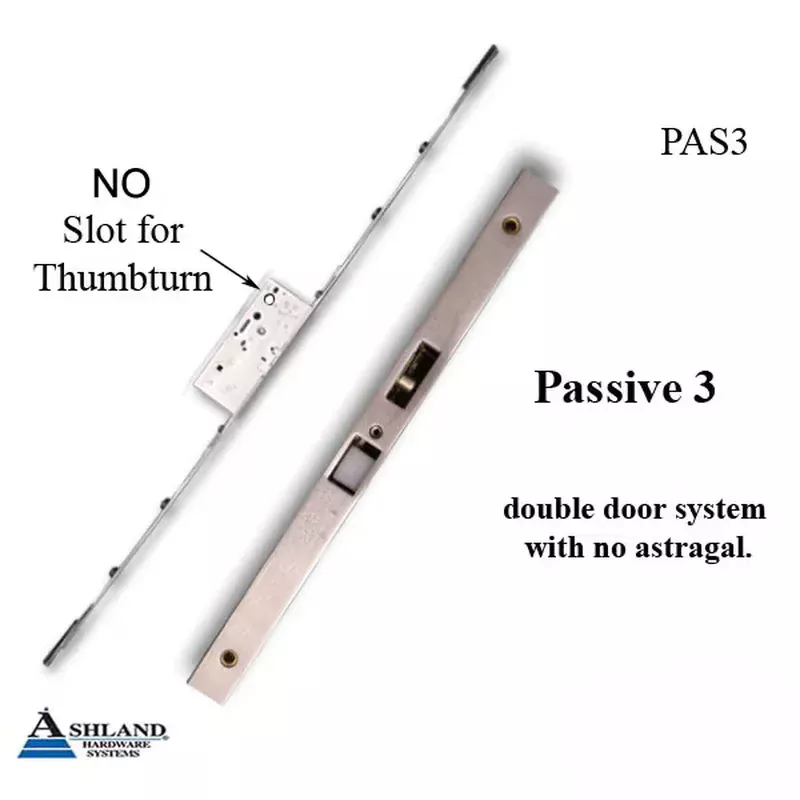

This is the passive (PS3) lock designed for use in a double door system with no astragal between panels.This is the center section of the Sentinel Swing Multipoint XP25 2 point passive lock with shoot bolts.The Passivegear boxdoes NOT have a slot for a tailpiece, just a round hole.The Passive side of the door handle trim does NOT have a thumb turn.When the deadbolt from active door goes into the receptacle on passive lock, it prevents the handles from moving.
Length: 40-15/16 inch (1039.6mm) 40.93 inchesFaceplate Width: 25/32 (20mm) inches
This part of the multipoint lock is the Receiver gear box with receptacles for the deadbolt and spring latch.This is 1 of 3 pieces to complete a Passive lock with shoot bolts.Jeldwen, Caradco 4101341Lower Shootbolt, 36″ HHJeldwen has Upper Extensions for their doors 77″, 80″, 93″
