Part Number:40234-35
The Old Style with pins and the New Style with alligator teeth arenot interchangeable.
ThisRoto Multipoint Lock Gearboxis designed exclusively for use with current-style multipoint locks. It is incompatible with older Roto locks.

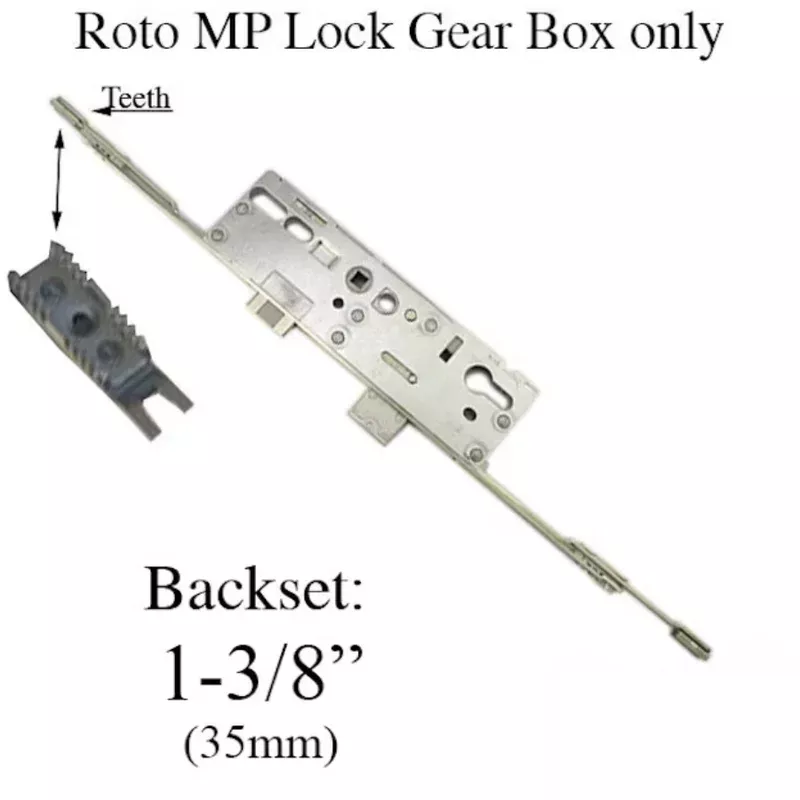

The new style gearbox features alligator teeth at the top and bottom, allowing for quick and secure attachment to the upper and lower extensions. Older-style locks, by contrast, use pins for connection.
For visual reference, see additional pictures to ensure proper identification and compatibility.
Faceplate Width: 5/8 inch (16 mm)Faceplate Length: 15-3/4 inch (400 mm)Backset: 1-3/8 inch (35 mm)Markings: H 35/92 1113Markings: Roto on the faceplateLatch: Combination of metal and Plastic
Operation: LockLift handle to engage locking devices and extend deadboltTurn cylinder thumb turn or Key to secure door in locked position.
Operation: UnlockTurn cylinder thumb turn or Key to unlocked door.Depress Handle to Retract deadbolt and unlock door
To Change Handing of Spring Latch:1. Insert small screwdriver into the round hole above the latch2. Push down on screwdriver handle3. Remove Latch and reverse, then push back into the lock body
SPECIAL NOTE:This Gearbox has Teeth on both ends, and the others have Pins. Compare all features for replacement.
