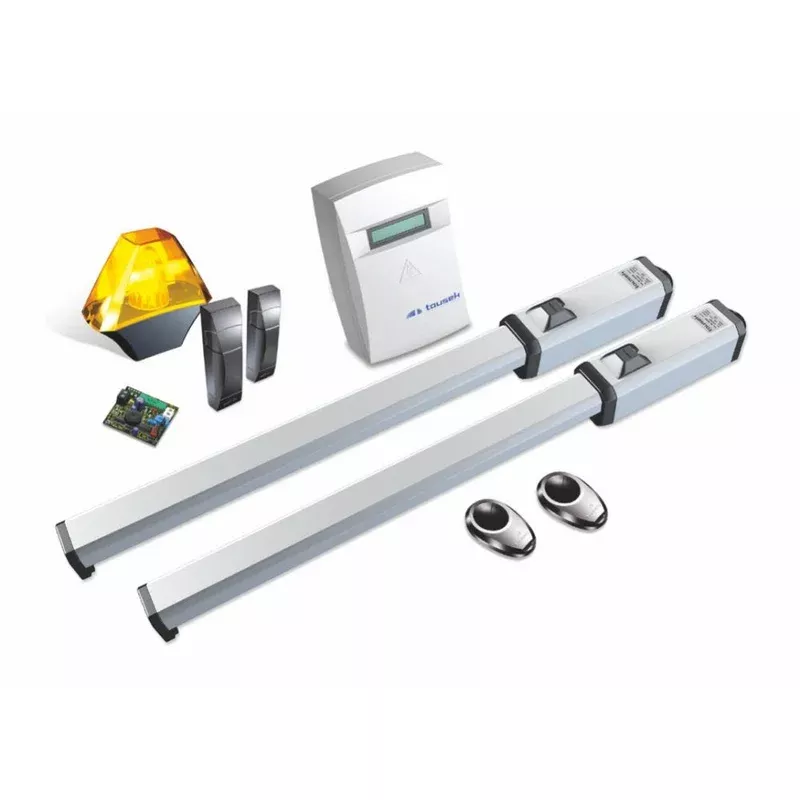

S12707 – Swing 265 AEB 29N hydraulic operator kit

S12707 – Swing 265 AEB 29N hydraulic operator kit

• very high thrust (to 4500 N)
• Strength regulation over bypass valves
• closed hydraulic system no ventilation necessary – maintenance-free
• anodized, elegant aluminum case
• separated adjustable opening and closing strength over bypass valves
• for lowest temperatures (to -25)
• covered emergency release

Technical data

• max. gate wing weight: 600 kg
• max. gate wing breadth: 2.5 m
• One switching duration: S3 40%
• Engine tension: 230 V
• Piston stroke speed: 10 mm/sec
• Max Schubkraft: 4500 N
• max. piston stroke: 285 mm
• max. aperture angle: 110

Kit includes,

• 2 x SWING inclusive installation material
• 1 control ST 50
• 1 radio receiver RS 868 2 channel
• 1 hand transmitter 4 channel RS 868
• 1 keyswitch AP/UP 2 T. Synthetic material with PHZ and 3 keys
• 1 light barrier of LS 41
