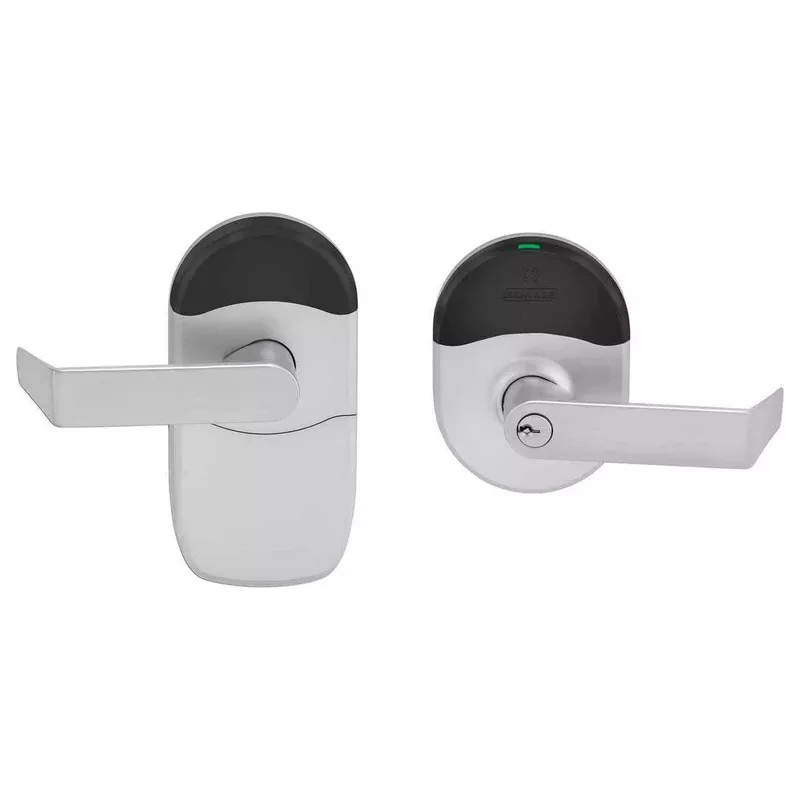

Schlage NDEB Mobile Enabled Cylindrical With Vandlgard, Interior Pushbutton with Indicator, SFIC Construction Core
The Schlage NDE mobile enabled wireless cylindrical lock is designed to affordably extend electronic access control deeper into the building beyond traditional perimeter and high security openings. Schlage NDE locks can function in offline or No-Tour mode or as a networked lock with either periodic check-ins or real-time management.
The open architecture design allows the NDE to be managed by Allegion software or to be integrated into popular physical access control systems through ourPACS Allianceprogram. This enables customers to choose the system that best fits their requirements and gives them the ability to move to a fully networked solution at any time.
The Schlage NDEB locks are compatible with a wide range of mobile, smart and proximity credential technologies and can operate in storeroom, office, privacy, or apartment functions using its interior push button with indication.
NDE works within existing network architecture and can exist in the same EAC system as other wireless locks including Schlage Control, AD-400 and LE.
ND Series Mechanical Lock
Users:Up to 5,000 1Audits:Up to 2,000 2Credential verification time: Smart and proximity:1 second;Mobile: mobile device dependentVisual communications:LED (red, amber, green)Audible communications:Audible indicator (field configurable)Communication standards:
- 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
- WPA2, WPA, WEP, 802.1x
- Bluetooth low energy (version 4.2)
- Transport Layer Security (TLS) version 1.2
- Advanced Encryption Standard (AES), 256-bit
Gateway communication range:Up to 30′ in typical building environments. A detailed site survey is recommended using the ENGAGE Test Kit (TKE). Reference ENGAGE GatewayData Sheet for additional detail.Wake-Up on Radio:Responds to command from host in less than 5 seconds when linked to ENGAGE; Gateway (requires PACS provider system)Data rate:NDE80 = 24mbps, NDEB = 54mbpsConnectivity options:
- Mobile device (send updates at the lock)
- Wi-Fi access point (automatic daily updates7)
- No-Tour8
- ENGAGE Gateway (real-time communication)- RS-485 to ACP or IP to host
Battery life:Uses 4 AA batteries;Up to 2 yearsOperating temperature Exterior:-31 to 151F (-35 to 66C); Interior: 32 to 120F (0 to 49C) (battery)Operating humidity:0 – 100% non-condensingCertifications:ANSI/BHMA A156.25-2013 (Indoor/Outdoor), ANSI/BHMA A156.2-2011, Series4000, Grade 1, UL 294, UL 10C, CSA C22.2 No. 205-M1983, FCC Part 15, ICRSS-210, ADA, ICC ANSI A117.1
