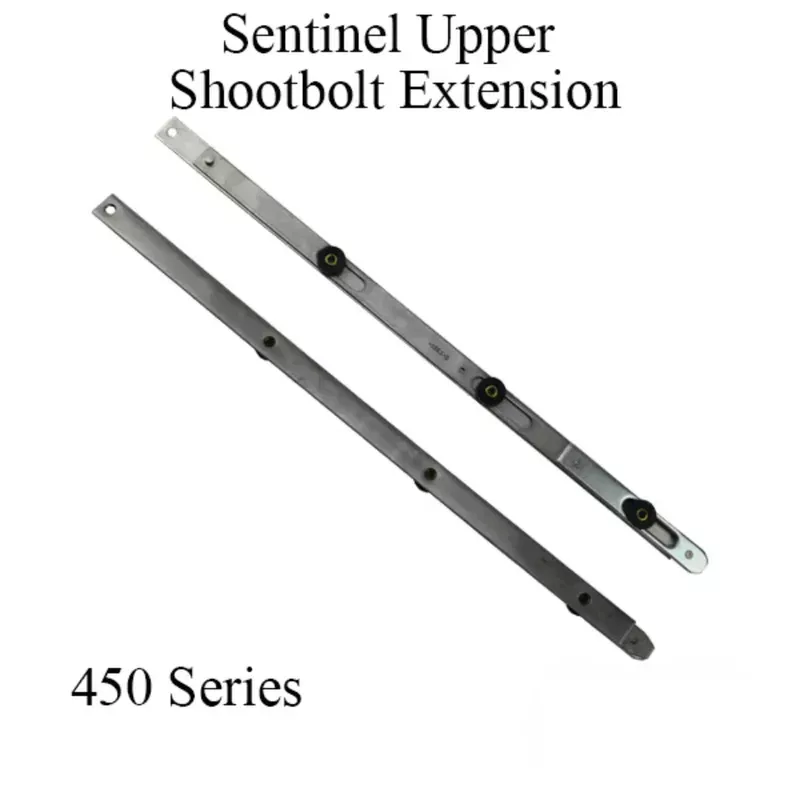

Part Number:4440201This is the Top Shootbolt section of the Sentinel XP25 Swing Multipoint LockThis part, the 450 Top Shootbolt is 1 of 3 pieces of the multipoint lockThis Top Extension When used with 36 inch handle height is for a 77 inch tall door
Extension Width: 25/32 inch (20mm)Overall Length: 18-15/32 / 18.468 inches (469mm) Shootbolt retractedShootbolt Tip: 450 Standard SeriesMaterial: Stainless Steel
This is 1 of 3 pieces to a complete Lock. Each door has the following componentsBottom Shootbolt for 36″ handle heightMiddle Gear with 40.93″ faceplateTop Shootbolt; lengths vary according to door height.
Note: The bottom / Lower extension is made the same as the Upper, Handle height can be changed by using different length extensions.
