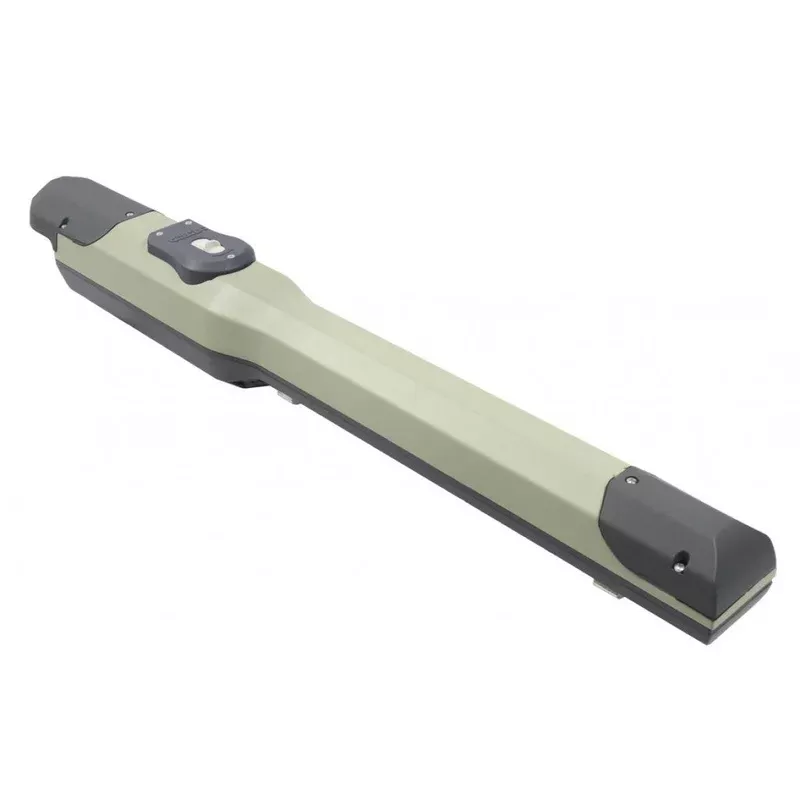

SERRA320 – 24v Motor Arm
Electromechanical operator in 24 Vdc with encoder for swinging gates of medium and big size for heavy use.
EASY TO INSTALL
Operator and encoder pre-cabled, adjustable brackets included, and door retainers integrated for straightforward installation.
SILENT AND FAST
Made with gears in steel and bronze-aluminium for high and adjustable speed of movement. Extremely silent, with the option to adjust the opening speed in the 24Vdc version.
TECHNOLOGICAL AND SAFE
Features the latest generation encoder and a strong motor, suitable for heavy use. The gears and dragging screw are fully protected, with Gibidi control units including embedded anti-crushing sensitivity to comply with EN12453 standards.
TECHNICAL FEATURES
| SERRA320 | |
|---|---|
| Type of use | Heavy Duty |
| Frequency of use | 40% |
| Motor power supply | 24 Vdc |
| Absorbed power | 100W |
| Protection degree | IP44 |
| Rod speed | 20 mm/s |
| Max rod stroke | 320 mm |
| Max thrust force | 1500 N |
| Adjustable force | Electronic |
| Adjustable speed | Yes ** |
| Max leaf width | 3.5 m * |
| Operating temperature | -20C to +60C |
| Encoder/limit switch | Encoder |
| Type of lubrication | Grease GBD WH-01 |
| Weight of the unit | 8.2 Kg |
NOTE:
*In case of blind leaf or wind presence or leaf over 2.5 m, the use of the electric lock is necessary ** By the use of the BE24 control board
DOWNLOADS
- GIBIDI SERRA320 Manual
