Genius Trigon -Kit for swing gates (GTRIGONKIT >RIGONKITS >RIGON24KIT & GTRIGON24KITS)
- Available versions: 230V or 24V
- Available kits: Double or single
- Simple and fast to install
- Cost effective choice as often no modifications are required to the existing load bearing structure
- Suitable for applications up to 3m with leaf locking, up to 2m without an electric lock
SPECIFICATIONS
| Trigon 02 | Trigon 02 -24 | |
| Power supply voltage (Vac) | 230Vac | 230Vac |
| Electric motor voltage | 230Vac | 24Vdc |
| Power (W) | 280 | 40 |
| Capacitor (uF) | 8 | – |
| Max torque (Nm) | 250 | 200 |
| Leaf opening time at 90 (sec) | 18 | 18 |
| Max leaf length (m) (see note bellow) | 3 | 3 |
| Indicative hourly cycles at 20C | >30% | >100% |
| Operator weight (Kg) | 11.5 | 11.5 |
| Protection class | IP44 | IP44 |
NOTE:
(1) Opening time and max leaf dimensions calculated for correctly executed installations at the dimensions indicated in the installation instructions and without slow-downs.
(2) Over 2m, an electric lock is essential to ensure leaf locking

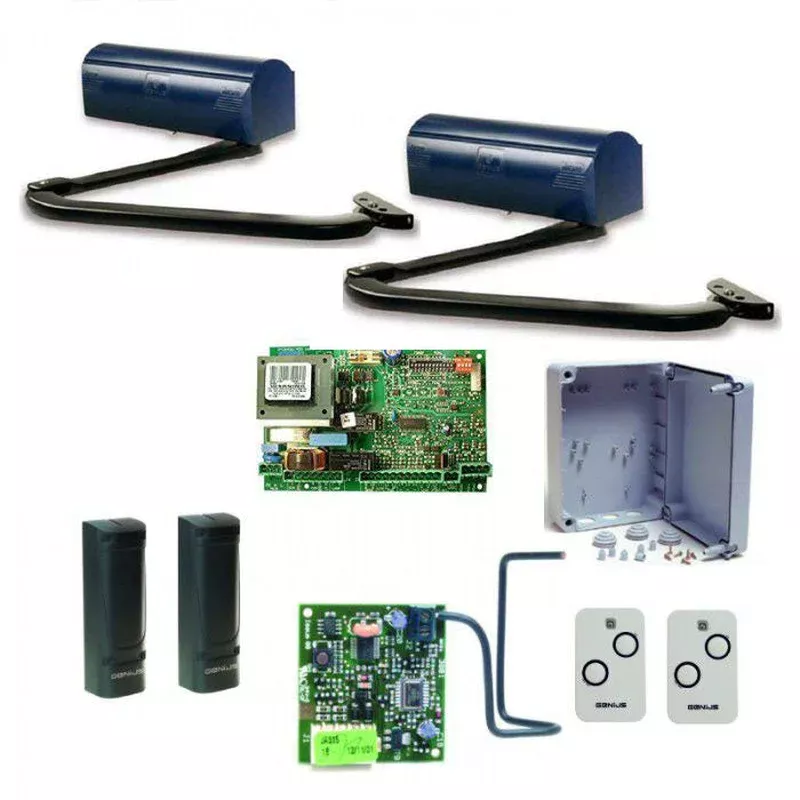

KITINCLUDES
| GTRIGONKIT | GTRIGONKITS | GTRIGON24KIT | GTRIGON24KITS |
| 230VDouble kit | 24V Single kit | 24VDouble kit | 24V Singlekit |
| 2xElectromechanical operator | 1xElectromechanical operator | 2xElectromechanical operator | 1xElectromechanical operator |
| 1xBrain 592 control board | 1xBrain 592 control board | 1xBrain 18 control board with housing | 1xBrain 18 control board with housing |
| 1xControl board housing | 1xControl board housing | 1xPair of vega BUS photocells | 1xPair of vega BUS photocells |
| 1xPair of vega photocells | 1xPair of vega photocells | 1xPlug in receiver/decoder 868 SLH | 1xPlug in receiver/decoder 868 SLH |
| 1xPlug in receiver/decoder 868 SLH | 1xPlug in receiver/decoder 868 SLH | 2xTwo-channel transmitter kilo 868 | 2xTwo-channel transmitter kilo 868 |
| 2xTwo-channel transmitter kilo 868 | 2xTwo-channel transmitter kilo 868 |
DOWNLOADS
- Genius Trigon 02 – Manual
