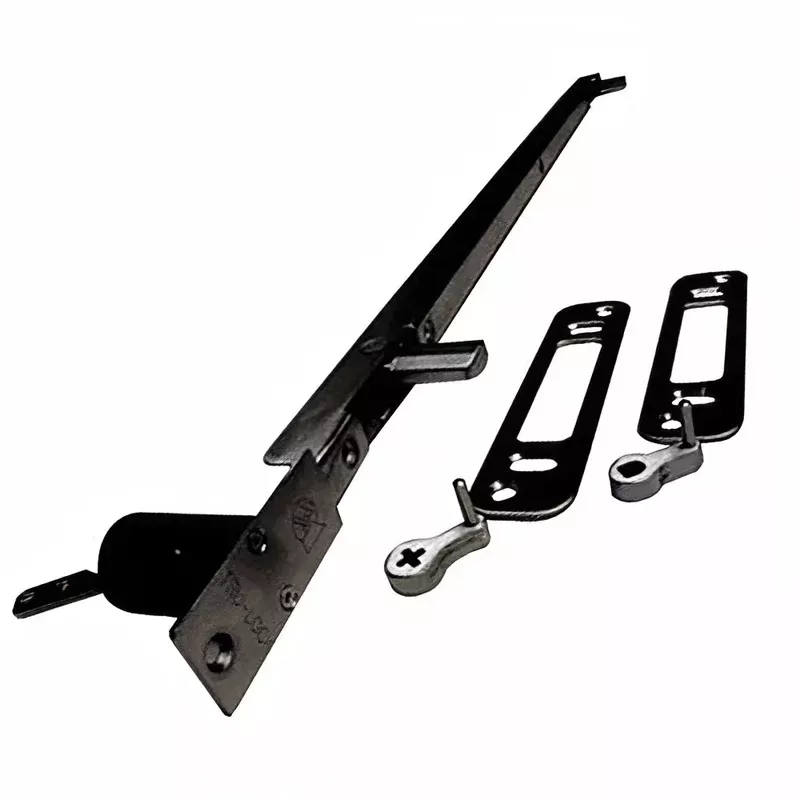

Part Number:40121Tru-Lock dead bolt/multipoint lock solutions kit.
Converts standard single dead bolt lock to a multipoint type lock.
Besides adding security, the multipoint lock helps prevent door warpage and creates a tighter seal.
Measurements / Specifications:Deadbolt Spacing: Approximately 18-1/2 inches between boltsFront Face Plate Overall Length: 24-5/8 in.Width of Face Plate: 19/32 in.Back Length (portion that goes inside the door cavity): 22-1/8 in.Length of Bottom Wider Portion Plate: 2-1/4 in.Width of Bottom Wider Portion Plate: 1 in.Depth of Lock: 3/4 in.Strike Plate: 4-3/4 in. x 1-1/8 in.Round Screw Hole Spacing: 4 in.Slot Hole Spacing: 3 in.
Easy Install:1. Remove existing dead bolt lock2. Route or mortise door edge 5/8 inch wide x 3/4 inch deep3. Mortise strike plates4. Install new multipoint lockTools Needed: Router w/ guide, 5/8 inch straight router bit, wood chisel, drill
Works with Kwikset, Schlage, Weiser, Dexter, Weslock and other dead bolts.
Kit includes strike plates.
Priced and sold as a package.
Installation kit, with routers, fixtures, bits, etc. is also available:40122Installation kit is perfect for contractors or handymen doing multiple installations.
