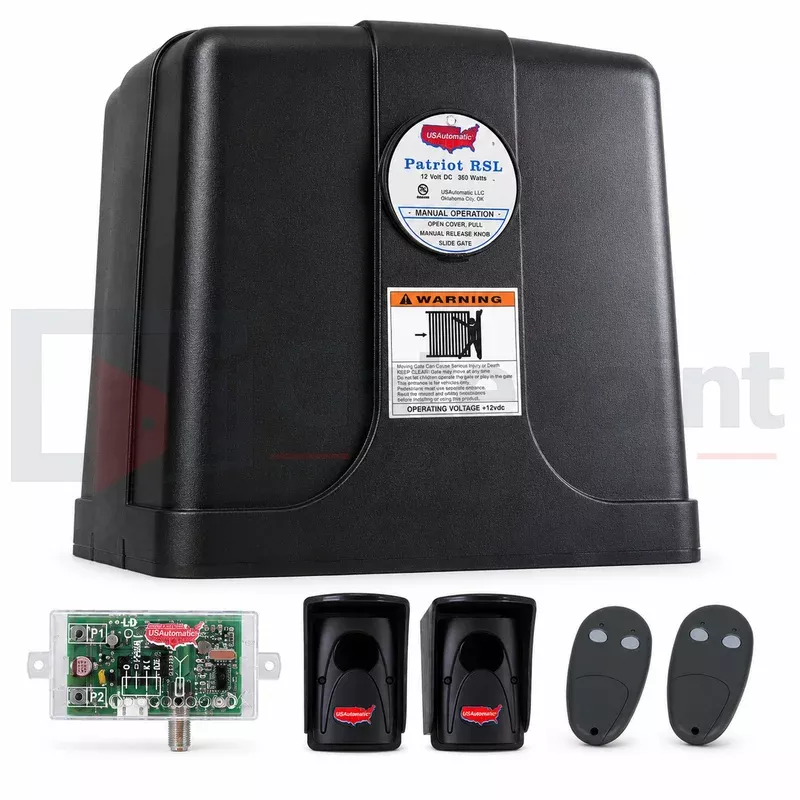

The US Automatic Patriot RSL AC Slide Gate Operator is a high-efficiency residential and light-commercial slide gate system engineered for reliable daily operation, battery backup performance, and fast gate movement. Designed for residential properties, farms, ranches, private roads, and light-commercial applications, the Patriot RSL combines low power consumption, smooth operation, and dependable access control in a durable American-made platform.
Built specifically for slide-style gates, the Patriot RSL is capable of operating gates up to 32 feet in travel distance and weighing up to 1,000 pounds. The system features a high-efficiency inline gear motor with integrated brake assembly and delivers gate speeds up to 1 foot per second for fast and efficient entry and exit operation.
The Patriot RSL includes multi-cycle battery backup capability for continued operation during AC power outages and supports optional solar charging for off-grid or hybrid power applications. Adjustable soft start and soft stop functionality help reduce mechanical wear while improving long-term operator reliability.
Designed for simple installation and dependable operation, the Patriot RSL includes two sets of safety photo eyes and two remote controls while offering integrated timer-to-close functionality, mechanical rotary limit controls, and mobile app compatibility.
Features
- Residential and light-commercial slide gate operator
- Fast gate speed up to 1 foot per second
- Supports gates up to 32 ft. and 1,000 lbs.
- Multi-cycle battery backup operation
- AC or solar charging compatible
- High-efficiency inline gear motor with brake assembly
- Adjustable soft start and soft stop operation
- Mobile app compatible
- Includes two safety photo eye sets
- Includes two 2-button remote controls
- Mechanical rotary limit controls
- Built-in adjustable timer-to-close
- Made in the USA
Specifications
Model: Patriot RSL ACOperator Type: Slide Gate OperatorGate Configuration: Single Slide GateApplications: Residential, Light Commercial, Farm & RanchMaximum Gate Length: 32 Ft.Maximum Gate Weight: 1,000 lbs.Power Input: 12VDC Battery / ACDrive System: Inline Gear Motor with Built-In Brake AssemblyGate Speed: 1 Ft. Per SecondLimit Controls: Mechanical Adjustable Rotary LimitsSoft Start/Stop: Adjustable via Pulse Width Modulation SoftwareTimer to Close: Adjustable from 2120 SecondsSafety Photo Eyes: Two Sets IncludedRemote Controls: Two 2-Button Remotes IncludedReceiver: Pre-Wired Solar-Friendly LCR Dual Channel ReceiverControl Box Construction: Painted Galvanized Steel Frame with ABS Molded CoverMounting Options: Concrete Pad or 4″ Square Post MountManual Release: Pull-Knob ReleaseWarranty: 3-Year Component / 5-Year Control BoardCertifications: UL 325 CompliantClass I, II, III & IVCountry of Manufacture: United States
Key Features
- High-efficiency slide gate opener platform
- Continuous operation during outages with battery backup
- Solar-compatible for off-grid applications
- Fast gate travel speed improves property access flow
- Adjustable soft start/stop extends operator life
- Durable galvanized steel and ABS enclosure construction
- Padlock-compatible enclosure for added security
- Mobile app compatibility for convenient access management
- ETL tested and UL 325 certified
- Ideal for residential, ranch, and light-commercial properties
Included Accessories
- One Safety Photo Eye Sets
- Two 2-Button Remote Controls
Ideal Applications
- Residential Driveways
- Farms & Ranches
- Private Roads
- Light Commercial Properties
- Rural Property Access
- Single Slide Gate Systems
Note: Batteries, and additional access control accessories may be sold separately unless otherwise specified.
Resources
- US Automatic Patriot RSL Installation Manual
- US Automatic Patriot RSL Brochure
