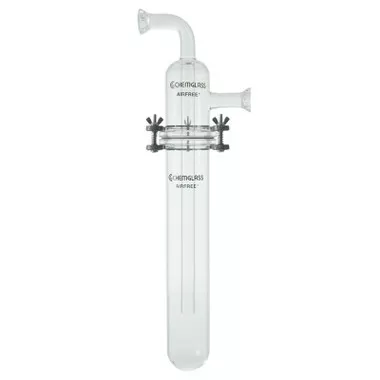

Two-piece vacuum trap with 15 O-ring joints on both the inlet and outlet ports. The seal between the trap stopper and body is made with a 57mm flat O-ring flange for total grease-free operation when used with either the CG-AF-0060 or CG-AF-0061 manifolds. Trap body is 57mm OD x 300mm in length to be used with a 4,300mL Dewar Flask (CG-1593-05 or CG-1594-05.) Complete item consists of the trap stopper and body, one CG-139-02 horseshoe clamp, one 331 Viton O-ring and two 116 Viton O-rings. Manufactured from Type I Borosilicate Glass.
Replacement Parts (Please call CP Lab Safety @ 888-322-5722 to order replacement parts.)
- CG-139-02 – Clamp, Horseshoe Style, 57mm Flange (each)
- CG-150-05 – Clamp, Pinch, Stainless Steel, 28 (each)
- CG-305-116 – O-Ring, Viton, 116 (Pack/12)
- CG-305-331 – O-Ring, Viton, 331 (each)
